Steam Engine Model - KACIO LS1-14 and LS2-14 Reciprocating Steam Engine - Choose the Steam Engine You Like
Steam engine: an engine powered by steam, usually one where the expanding action of the steam produced in a boiler moves a sliding piston in a cylinder.
Story of the Steam Engine
New sources of power were needed because the industry grew rapidly in the mid-18th century. The steam engine was created as a way to turn heat into power and became popular because of this.
French physicist Denis Papin is frequently credited with laying the experimental groundwork for using steam power. Papin created the first pressure cooker in 1679. It was a sealed pot with a tight-fitting cover that held steam inside until it reached a high pressure.
After reading about Papin's research, Thomas Savery created a steam-powered suction device to extract water from coal mines. Savery's device from 1698 had a boiler, a closed water-filled reservoir, and valves as its main parts. Water was forced out of the reservoir through a one-way outlet valve until the pressure of the added steam emptied it.
Water was sprayed on the outside of the vessel to cool the steam. This created a vacuum that could be used to bring up more water through a valve at the bottom. Unfortunately, there was a limit to how high water could be raised because of the formed imperfect vacuum.
Thomas Newcomen invented the atmospheric steam engine. The creation outperformed Thomas Savery's earlier blueprint. Unlike Thomas Savery's 1698 invention, Newcomen's engine did not have its pressure intensity restricted by the steam pressure.
Thomas Newcomen and John Calley constructed their first engine in 1712 to pump water out of a mine shaft filled with water. The Watt engine's ancestor was the Newcomen engine.
James Watt gained notoriety for advancing the steam engine. Watt was tasked with fixing a Newcomen engine, considered the best steam engine of its day but inefficient, while he was employed by the University of Glasgow in 1765. That prompted the creator to begin refining Newcomen's concept in other ways.
Watt's invention in 1769 for a separate condenser attached to a cylinder via a valve was the most significant advancement. Watt's design had a condenser that stayed cool while the cylinder was hot, unlike Newcomen's engine. Watt's engine eventually led to the Industrial Revolution, becoming the standard design for all contemporary steam engines.
Reciprocating engine: A heat engine, sometimes called a piston engine, transforms pressure into rotational motion using one or more reciprocating pistons. There are three main types of engines. The steam engine was used during the Industrial Revolution. The internal combustion engine is commonly found in cars. The Stirling engine is used for specific purposes.

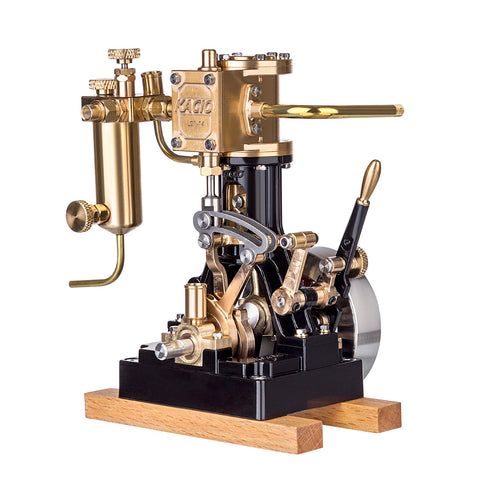

KACIO LS1-14 Single Cylinder Reciprocating Steam Engine Model for Model Ship Model Boat Above 60cm

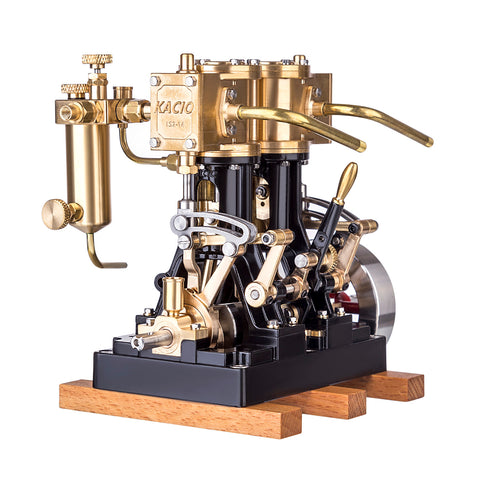

KACIO LS2-14 2 Cylinders Reciprocating Retro Steam Engine Model for Model Ship Model Boat Above 80cm
Features:
.The body's surface is treated with electrophoresis, which will not fade long.
.Integrated CNC steel crankshaft features good stability and high concentricity.
.The joint surface is sealed with a fluorine rubber ring, which is high-temperature resistant and corrosion-resistant.
.Multi-functional oil cup. Excellent lubrication system.
. A lubrication port is provided for each friction surface.
.The spindle sleeve is made of high-hardness of beryllium copper
.Large cylinder diameter and large stroke provide mighty power for the ship
.High power requires an efficient boiler. There is no boiler included. You can purchase it for yourself and get our advice regarding a boiler that matches.
.People adore it because of its elegant and tiny form, which resembles a gem. It is a valuable addition to any collection and a superb mechanical handcraft. A surprise present fit for fans of Steam models
